IFT means Insulation for Transformers, It's an industries is a manufacturer of specialised electrical insulation materials used across power distribution and electrical equipment applications.
Our product portfolio serves the insulation requirements of Distribution & Power Transformers, Current Transformers, Instrument Transformers, Capacitors, Motors and Alternators.

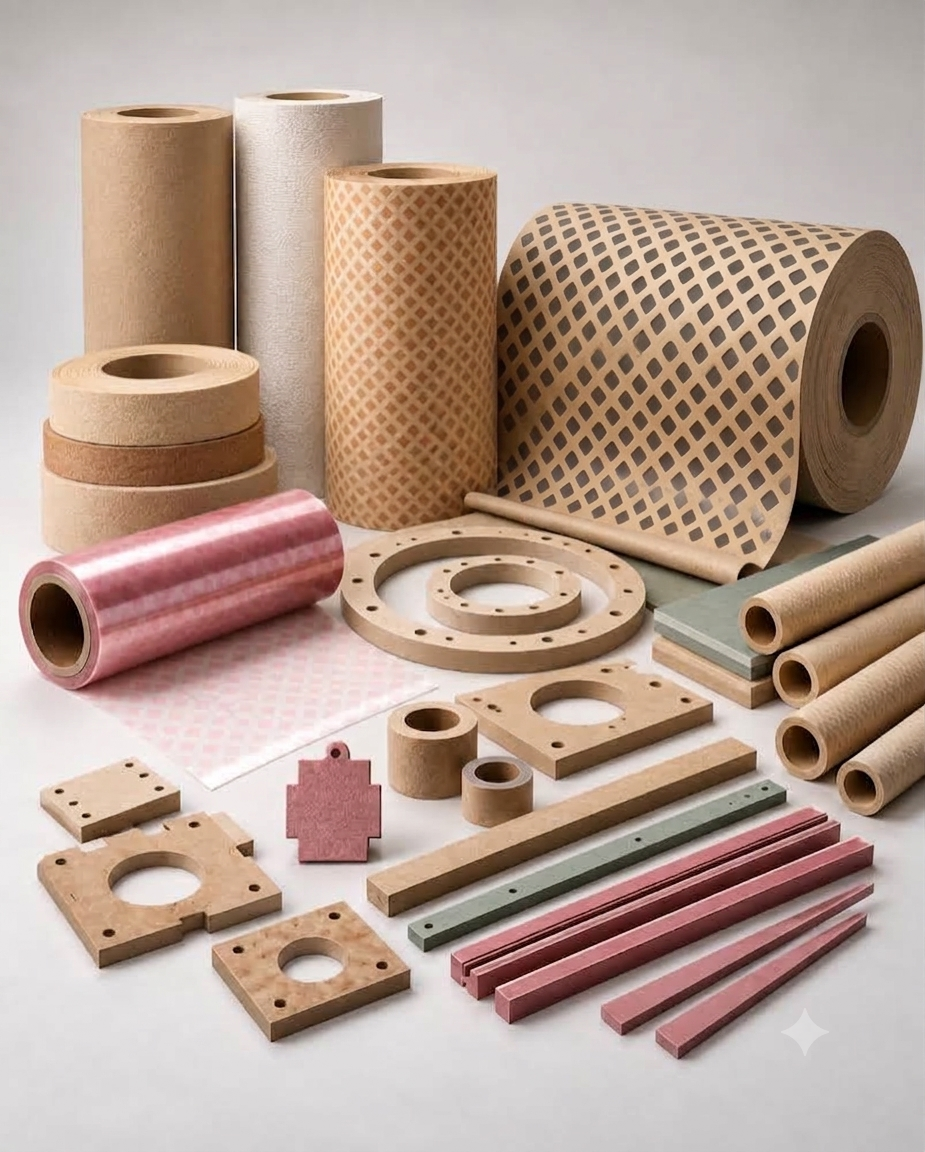

Our range includes Diamond Dotted Paper, Electrical Grade Crepe Paper, Glass Fibre Cloth Prepregs,Press Board Components, Polyester Diamond Dotted Film, and other specialised treated paper and film products.
For selected products, different thicknesses, slit sizes and dimensions can be manufactured according to customer requirements.
A focused range of insulation papers, films and prepreg
materials for transformer, motor and related electrical
applications.
Selected products are available in different
thicknesses, slit sizes and dimensions according to
customer requirements.
Products developed for Distribution Transformers, Power Transformers, Current Transformers, Instrument Transformers and other electrical equipment.
Product quality remains at the centre of IFT Industries'
manufacturing approach.
We emphasise dependable service and strong relationships with our customers and vendors.

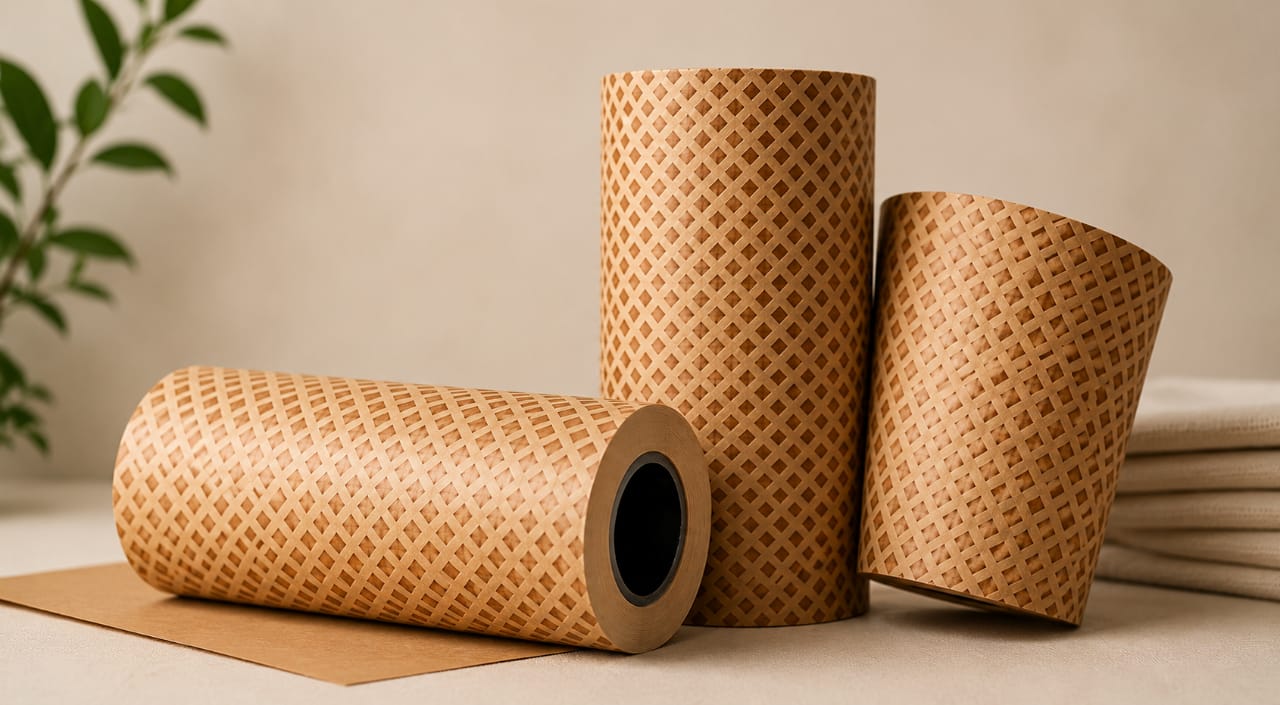

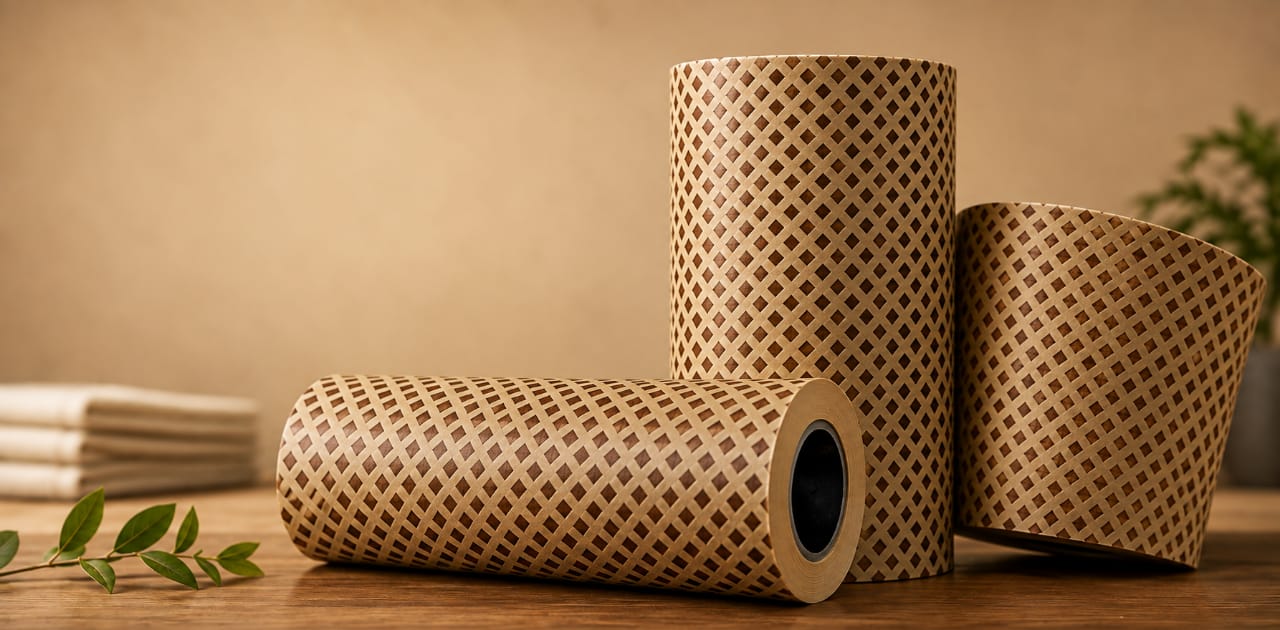

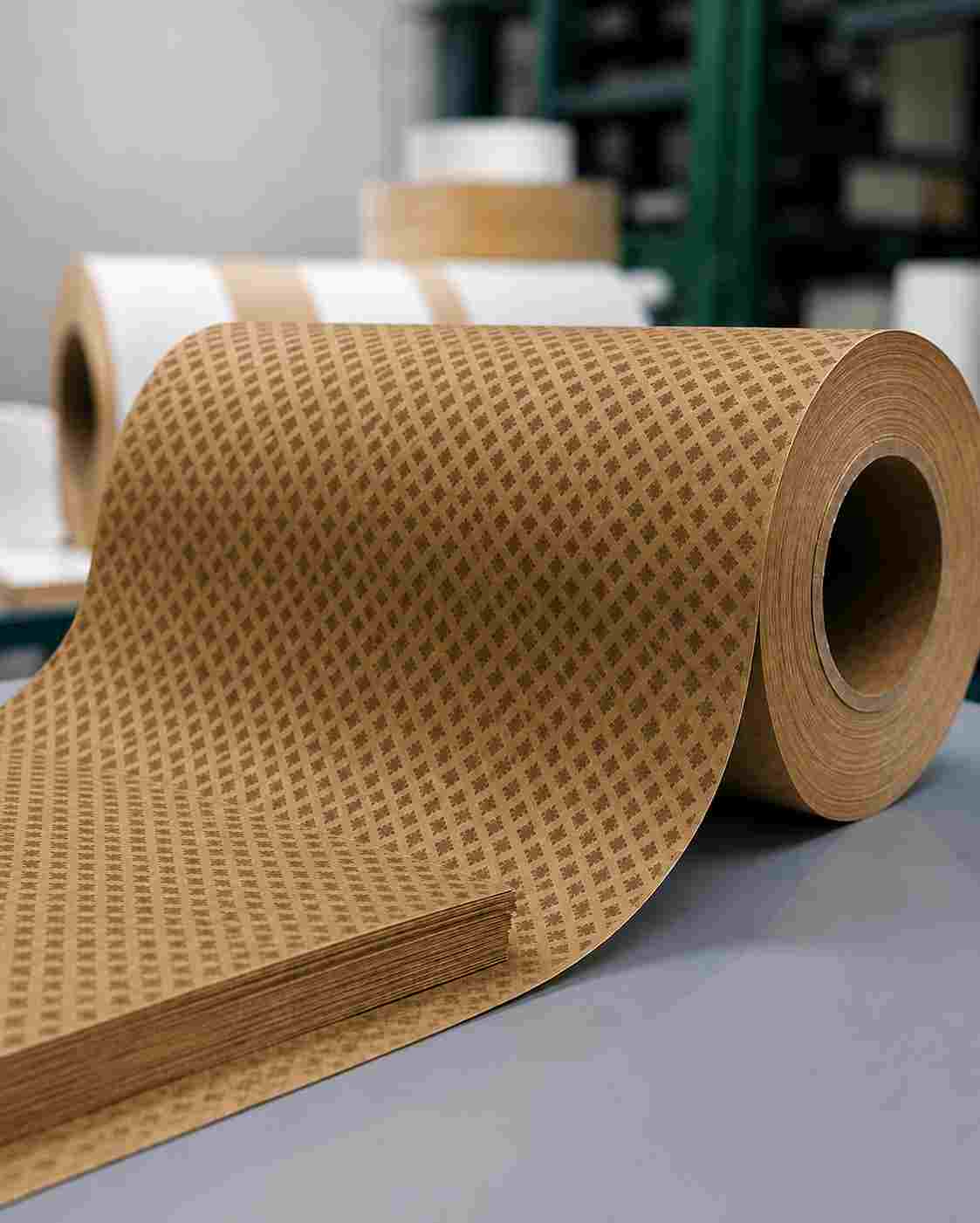

Diamond Dotted Paper / Epoxy Dotted Paper — DDP
We manufacture Diamond Dotted Paper using an electrical grade insulating kraft paper with thermostable 'B' stage heat curable diamond shaped epoxy resin coating applied in such a way that sufficient spaces exists between them for oil impregnation. It is used to electrically insulate and mechanically bond the winding layers; by this the epoxy resin on the kraft paper cures during the process and forms a high strength bond. This bond prevents the windings from moving during operation or under short circuit stresses. The diamond shaped epoxy resin coating improves the temperature resistance and thermal performance of the kraft paper. Due to adhesion it provides quick evacuation of air and moisture during drying and thus minimises the risks of partial discharge. Thus with the use of Epoxy Dotted Paper it gives greater strength and coil integrity throughout the life of the transformer. It is tact free at room temperature and after curing provides right bonding. It is available in thickness ranging from 2mil to 20mil of any slit sizes.
We also manufacture DDP by using Nomex®️ paper or press paper as a base paper as per customer requirement. Nomex®️ paper is a product of DuPont that provides high levels of electrical, chemical and mechanical integrity upon using.
Available thickness: 2 mil to 20 mil.
Slit sizes: As per customer requirement.
Electrical Grade Crepe Paper & Crepe Paper Tubes
We manufacture Electrical Grade Crepe Paper which is used as Insulation in Distribution and Power Transformers, Current and Potential Transformers and for wire covering in paper covered conductors. The Electrical Grade Crepe Paper provides elongation to a normal electrical grade kraft paper which is used to cover copper or aluminum conductors bent at acute angles. This results in the insulation not breaking or cracking when bent over. The elongation provided ranges from 20 % to 220%.
This Crepe Paper is used to cover copper conductors having various cross sectional shapes. This paper is used to cover copper conductors bent at an angle of 180 DEGREES. As a result this insulation will not break or tear or crack compared to plain kraft paper insulation.

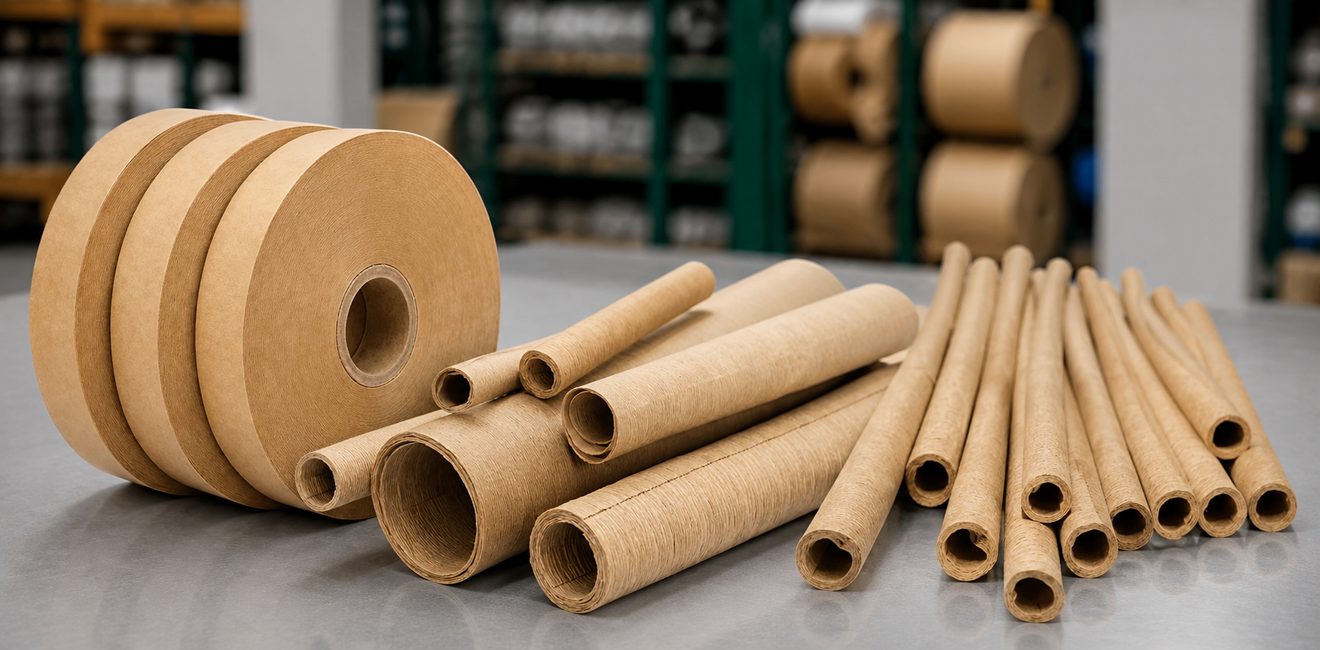

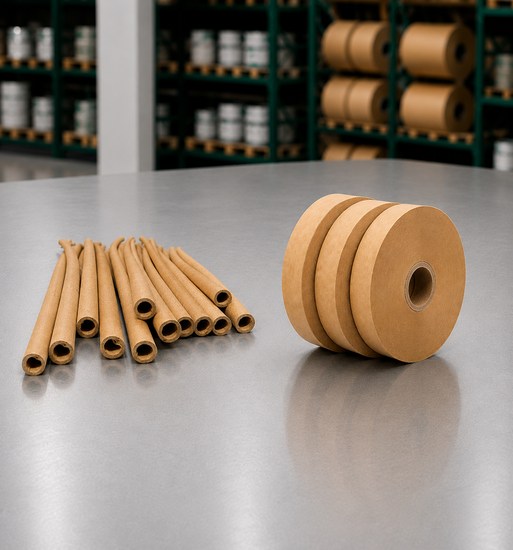

We manufacture different thickness and different cutting sizes of electrical grade crepe paper as per customer requirement. Along with it we also manufacture ELECTRICAL GRADE CREPE PAPER TUBES with different inner and outer diameters as per customer requirement.

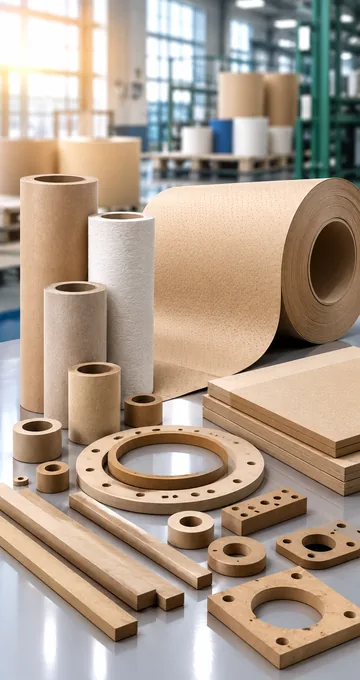

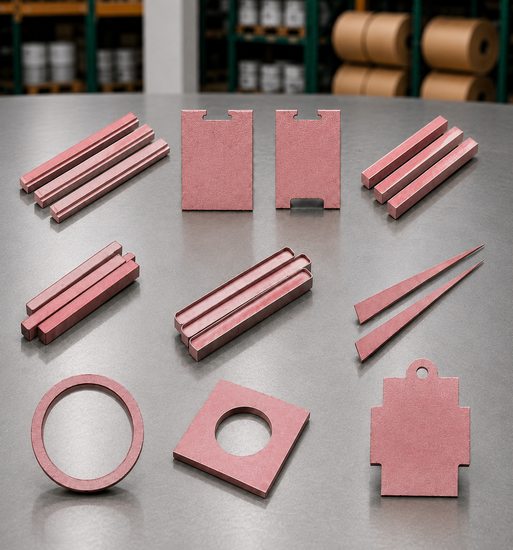

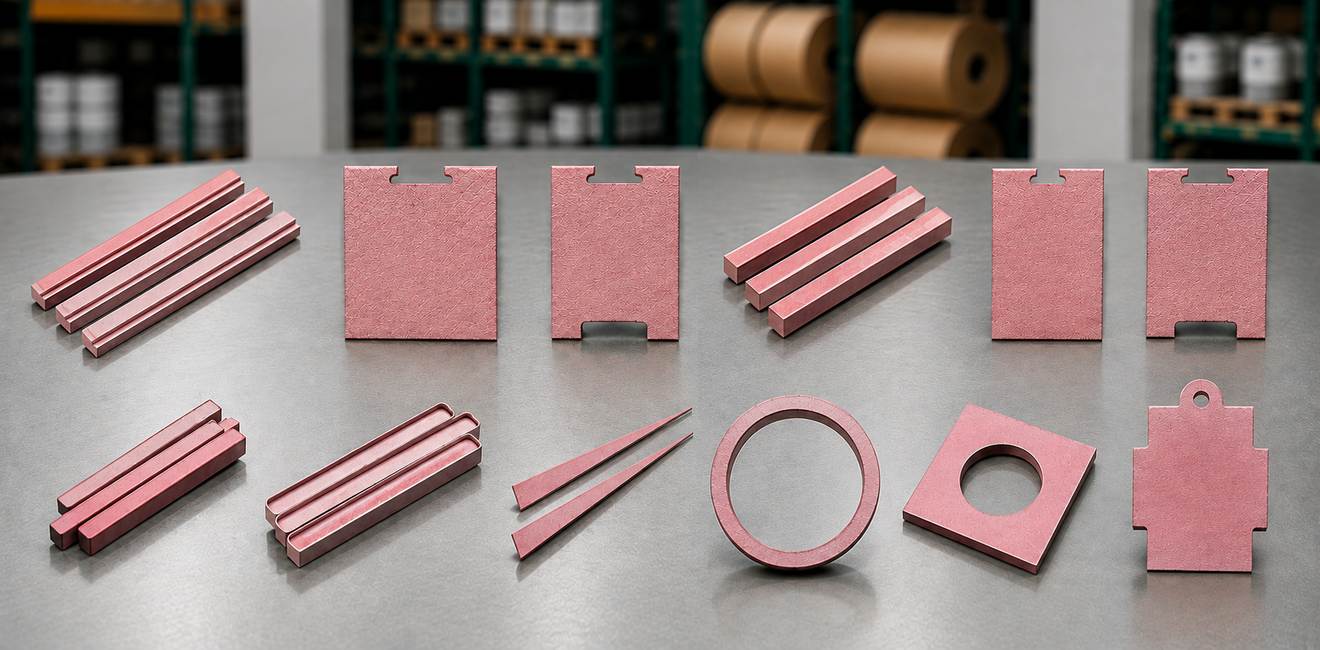

Press Board Components
Press Board Components are precision-cut electrical insulation components used in transformer and other electrical insulation applications. These components are manufactured from electrical insulation press board and supplied in different shapes and sizes according to application requirements.
Available thickness: As per customer requirement.
Slit sizes: As per customer requirement.

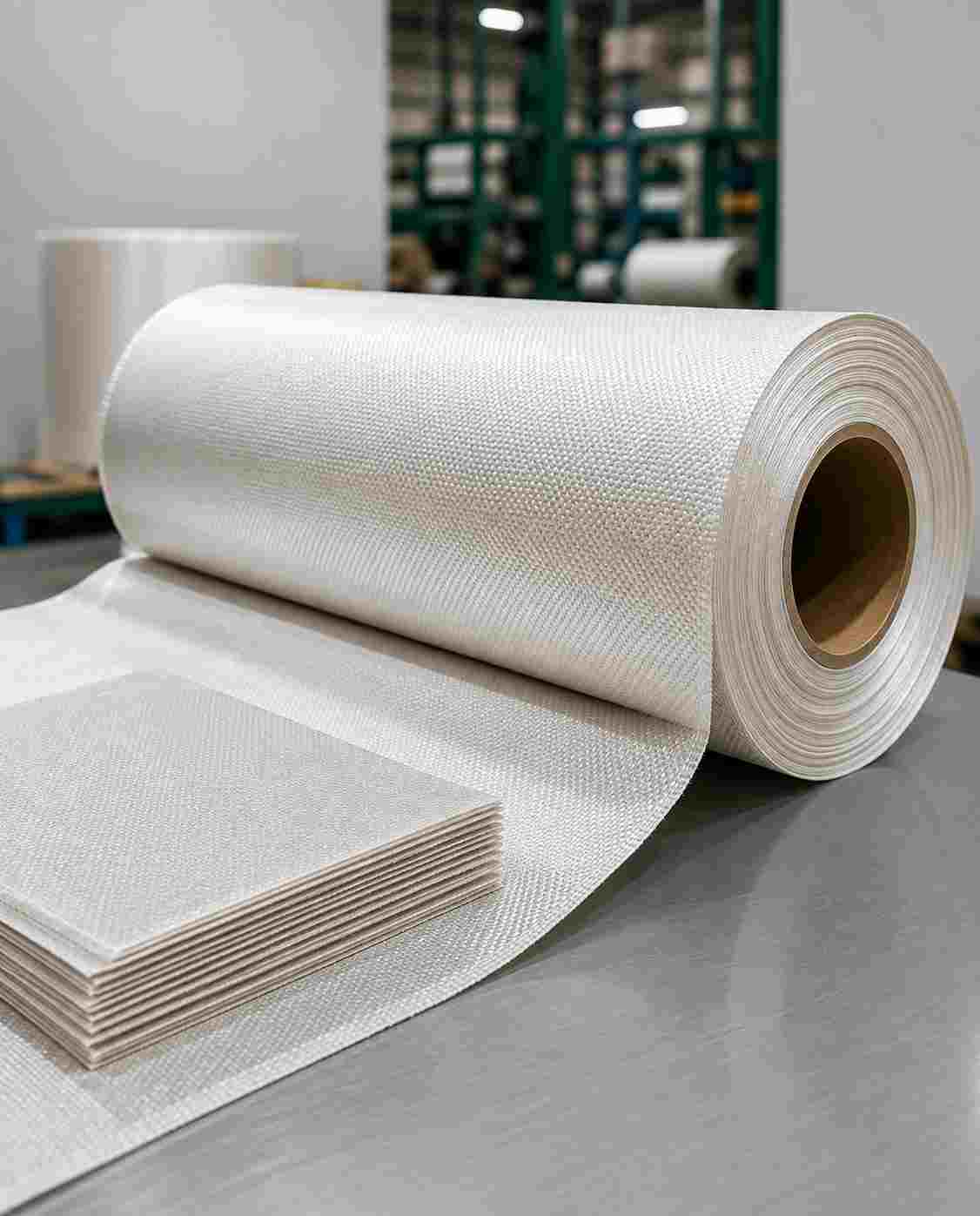

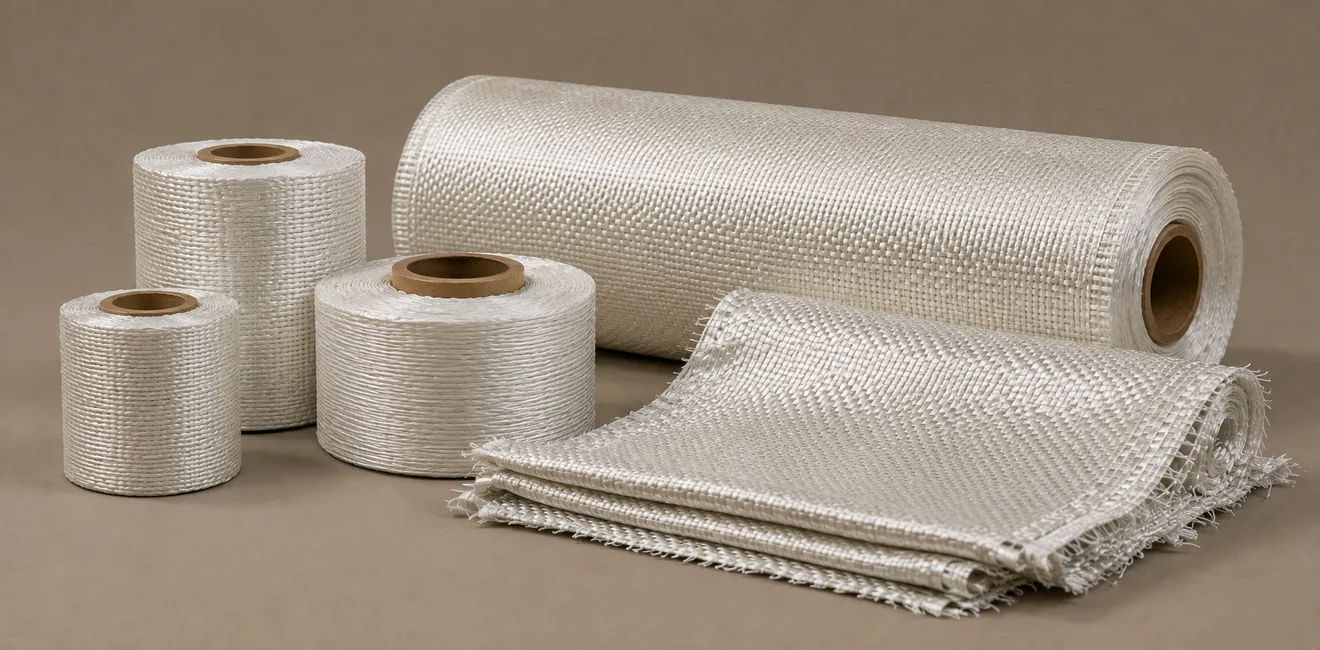

Glass Fibre Cloth Prepregs
We manufacture Glass Fabric Prepregs using fine glass fibre cloth with impregnation of a special grade epoxy resin. The cured glass fibre cloth has high rigidity and good compressive strength and majorly used layer insulation in low-voltage windings of cast resin distribution-transformers, insulation of armature winding in disc armature motors, armouring for resin cast in dry-type transformers. It can be used as B and F insulation classes for different applications.
Polyester Diamond Dotted Film
We manufacture Polyester Diamond Dotted Film which is widely used as an interlayer insulation in Dry-type transformers, SF6 high current voltage transformers and also suitable in motors as a slot insulation or phase insulation film. It is coated with Thermostable ‘B’ Stage Epoxy Resin in a pattern similar to Electrical Grade Diamond Dotted Paper. It is available from thickness 2mil to 5mil.
Available thickness: 2 mil to 5 mil.
Nemo enim ipsam voluptatem quia voluptas a aspernatur aut odit aut fugit sed consequuntur
Nemo enim ipsam voluptatem quia voluptas a aspernatur aut odit aut fugit sed consequuntur
IFT Industries manufactures high-quality electrical insulation materials for power transformers, distribution transformers, instrument transformers and industrial applications. Get in touch with our team to discuss your specific insulation requirements.
We provide insulation solutions designed to meet the demanding requirements of transformer and industrial applications.
We provide insulation solutions designed to meet the demanding requirements of transformer and industrial applications.
Share your product requirement, application, thickness, slit size or other required specifications with our team.
Where customisation is available, products can be manufactured in suitable thicknesses, slit sizes or dimensions according to the agreed requirement.
We focus on timely supplies, efficient service and maintaining strong relationships with our vendors and customers.
Our team coordinates the enquiry and supply requirements with the customer.
